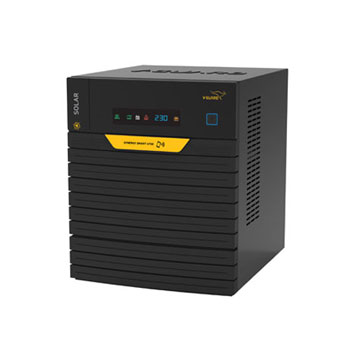

SOLSMART 4750
The V-Guard SolSmart 4750 Solar Hybrid inverters is an epitome of innovation and technology and is packed with industry-leading and first-in-class features.
Built-in Intelligence
Using hybrid technology, the SolSmart 4750 Solar Hybrid inverters is designed as an integrated power system to charge up from both grid and solar power. What is more, the system is intelligent and switches to solar power automatically whenever it is available, thus avoiding grid power as far as possible. Additionally, whenever possible, its Auto Discharge feature ensures automatic switch to use of battery power rather than drawing on grid power, for example at night, to save power and cut electricity bills considerably.
Pure Sinewave
To ensure that sensitive equipment can also safely operate on these inverters, a Digital Signal Controller ensures that the output is a pure sinewave.
V-Guard Smart Mobile App
The SolSmart 4750 Solar Hybrid Inverters can be controlled by the V-Guard Smart Mobile App. This helps your inverter to utilize solar power even more effectively. The App, for example, offers weather forecasts that can help plan power distribution and usage to coincide with sunshine periods whenever possible.
The App also shows you real-time solar utilization to help you monitor how well your system is using solar power. This helps you understand how the solar power is being put to use at any point of time – for charging the battery, running the load, or wasted due to no requirement – and to accordingly fine-tune the inverter’s usage.
The App also offers you a graphical display of various parameters such as Previous Day Savings, Daily Savings and Total savings since Installation, all of which help you in RoI calculations.
‘Panel Clean’ Reminder
When the solar panels get dirty, their efficiency reduces. To ensure that they remain clean at all times, the system gives you a timely reminder to clean the panels. This helps optimize solar power usage and save power bills too.
Wi-fi and Bluetooth Connectivity
Wi-fi and Bluetooth connectivity offered by these inverters allows you to monitor and control them from anywhere in the world! Amazon’s Alexa or Google’s Home device can also be used to increase the inverters backup time to the maximum possible. Further, notifications from the inverters, for low battery, overload, etc, help you take action as necessary, based on the situation.
Battery Protection
A water top-up reminder is a timely and useful feature that helps keep your system efficient and effective, besides ensuring longer battery life. Its Battery Gravity Builder feature with overcharge and deep discharge protection also helps protect the battery and enhances its life as well.
Intelligent Load Selection
Today’s modern household has inverter-technology based equipment such as ACs, washing machines and refrigerators, that require a specific voltage range of operation which conventional inverters and inverters cannot provide. The SolSmart 4750 Solar Hybrid inverters offers you an ‘Equipment Mode’ wherein it allows the system to provide backup in the voltage range needed by these sophisticated machines. An ‘Appliance Mode’ is further available to run heavier loads such as electric irons, coffee makers, grinders, toasters, hair dryers, etc, albeit for shorter periods. Regular appliances such as fans, lights, laser printers, desktop computers, laptops, mobile chargers, induction cooktops, desert coolers, chargers, fax machines, CCTV cameras, etc, can be run in its ‘Normal Mode’.
Rugged Design
The V-Guard SolSmart 4750 Solar Hybrid inverters is designed and built to be rugged and reliable, with in-built protection against short-circuits, overloading, surges, wiring faults, etc.
Wide Range of Applications
With a capacity of 4200VA (3350W) and designed for use with solar panels rated up to 3300Wp, 48V, the SolSmart 4750 is suitable for multiple computers, fans, CFLs, tubelights, EESL LED bulbs, and/or TVs, an iron box, a 1.5 ton inverter AC, a refrigerator, a cooler, a mixer grinder, a 1HP pump, a 2kW geyser, an automatic washing machine (up to 2500W), a 1.5kW induction cooktop, or a 2kW dishwasher.
- Capacity : 4200 VA/3350 W
- Input Voltage Range : Nor:- 90 – 290 V / UPS:- 180 – 260 V / Eqp :- 140 – 290 V
- Output Waveform : Sine wave
- Compatible Battery : 48 V, 100 AH to 250 AH
- Max. Panel Capacity : 70-100 VOC, 3300 Wp
- Connectivity : Bluetooth/Wi-Fi
- Application : Fan, CFL, Tube Light, EESL LED Bulb, TV , Iron Box, Refrigerator, Cooler, Mixer Grinder, Pump set -1.5 Hp, Geyser – 2KW, Inverter AC – 1.5 Ton, Automatic Washing Machine (up to 2500W), Oxygen Concentrator 10-15 L.
- Net Weight : 30 Kg
- Control and monitor the Solar Hybrid inverters via easy-to-use V-Guard Smart Mobile App (Wi-Fi & Bluetooth).
- Now you can change modes or alter the settings of your appliances using the V-Guard Smart Mobile App. For e.g. You can increase your fan / Air cooler speed using this way.
- Facility to increase inverters battery backup time through the V-Guard Smart Mobile App on your phone.
- Equipped with inbuilt high efficiency solar charge controller with solar panel compatibility as per specification.
- With the Battery Gravity Builder technology, your battery gets boost charged at the comfort of your home and protects it from deep discharges.
- Easily configure the Solar & inverters settings according to your requirements and for your various needs.
- Keep a check on solar consumption parameters such as Today’s saving, Yesterday’s saving and Total saving etc. through the modern display system.
- Additional equipment mode setting to facilitate usage of high-intensity appliances.
- Digital Signal Controller based design for pure sine wave output.
- Choose from multiple charging modes for different battery technologies such as Tubular/Flat Battery and for various capacities ranging from 80Ah to 230Ah.
- Intelligent load and temperature-based cooling fan operation.
