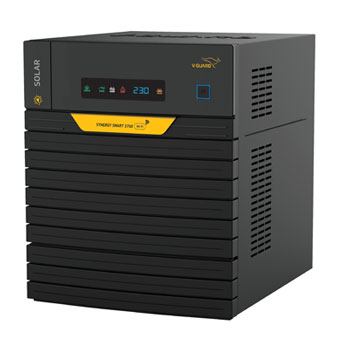

SOLSMART 3750
The V-Guard SolSmart 3750 Solar Hybrid inverters is an epitome of innovation and technology, and is packed with industry-leading and first-in-class features.
Built-in Intelligence
Designed as an integrated power system, the SolSmart 3750 Solar Hybrid Inverters uses hybrid technology to charge up from both grid power and solar power. Additionally, the system’s intelligence detects solar power availability and uses that whenever available, thus reducing the use of grid power. What’s more, a smart Auto Discharge feature makes the system run on battery whenever fully charged rather than draw on grid power, for example at night, thus further saving power and reducing electricity bills.
Pure Sinewave
The output of these inverters is a pure sinewave, thanks to the use of a Digital Signal Controller, thus making it suitable for even sensitive applications.
V-Guard Smart Mobile App
The SolSmart 3750 Solar Hybrid inverters can be controlled by the V-Guard Smart Mobile App. Through various value-added features, the App helps your inverter to utilize solar power even more effectively. For example, weather forecasts from the App can help you plan usage to coincide with sunshine periods wherever possible.
To monitor how well your system is utilizing solar power, the App also shows you real-time solar utilization. This helps you understand how the solar power is being utilized at any point of time: for charging the battery, running the load, or wasted due to no requirement, and to fine-tune the usage of the inverter accordingly.
The App also offers you a graphical display of various parameters such as Previous Day Savings, Daily Savings and Total savings since Installation, all of which help you in RoI calculations.
‘Panel Clean’ Reminder
As time passes, solar panels get dirty and drop in efficiency as well. To ensure that they remain clean, the system gives you a timely reminder to clean them. This helps in reducing grid power usage further, and lowering your power bills.
Wi-fi and Bluetooth Connectivity
These modern inverters offer Wi-Fi and Bluetooth connectivity as well as control through Amazon’s Alexa or Google’s Home device, allowing you to monitor and control them from anywhere in the world! You can also use them to increase the inverters backup time to the maximum possible. You also get notifications from the inverter, for example, for low battery, overload, etc, which help you take action as necessary, based on the situation.
Battery Protection
A timely reminder for water top-up is another useful feature that helps keep your system efficient and effective, and ensures long life of the battery. Its Battery Gravity Builder feature with overcharge and deep discharge protection also helps protect the battery and enhances its life as well.
Intelligent Load Selection
Inverter-technology based equipment such as ACs, washing machines and refrigerators, require a specific voltage range of Operation That Conventional Inverters And Inverters Cannot Provide. The SolSmart 3750 Solar Hybrid inverters offers you an ‘Equipment Mode’ wherein it allows the system to provide backup in the voltage range needed by these sophisticated machines. Additionally, an ‘Appliance Mode’ is available to run heavier loads such as electric irons, coffee makers, grinders, toasters, hair dryers, etc, albeit for shorter periods. In its ‘Normal Mode’, you can use the inverter to run appliances like fans, lights, laser printers, desktop computers, laptops, mobile chargers, induction cook-tops, desert coolers, chargers, fax machines, CCTV cameras, etc.
Rugged Design
The V-Guard SolSmart 3750 Solar Hybrid inverters is designed and built to be rugged and reliable, with in-built protection against short-circuits, overloading, surges, wiring faults, etc.
Wide Range of Applications
With a capacity of 3200VA (2550W) and designed for use with solar panels rated up to 2640Wp, 36V, the SolSmart 3750 is suitable for multiple computers, fans, CFLs, tube lights, EESL LED bulbs, LED TVs, an iron box, a 1.2 ton inverter AC, a refrigerator, a cooler, a mixer grinder, a 0.75HP pump, a 1.5kW geyser, an automatic washing machine (up to 1600W), a 1.2kW induction cooktop, or a 2kW dishwasher.
- Capacity : 3200 VA/2550 W
- Input Voltage Range : Nor:- 90 – 290 V / UPS:- 180 – 260 V / Eqp :- 140 – 260 V
- Output Waveform : Sine wave
- Compatible Battery : 12 V, 80 AH to 230 AH, Lead Acid (3 Nos.)
- Max. Panel Capacity : 60 to 85 VOC, 2160 Wp
- Application : Fan, CFL, Tube Light, EESL LED Bulb, TV , Iron Box, Refrigerator, Cooler, Mixer Grinder, Pump set -0.75 Hp, Geyser – 1.5 KW, Dishwasher 2 KW, Induction Cooktop – 1.2 KW, Inverter AC – 1.5 Ton, Automatic Washing Machine (up to 1600 W), Oxygen Concentrator 10-15L.
- Control and monitor the Solar Hybrid INVERTERS via easy-to-use V-Guard Smart Mobile App (Wi-Fi & Bluetooth).
- Now you can change modes or alter the settings of your appliances using the V-Guard Smart Mobile App. For e.g. You can increase your fan / Air cooler speed using this way.
- Facility to increase inverters battery backup time through the V-Guard Smart Mobile App on your phone.
- Equipped with inbuilt high efficiency solar charge controller with solar panel compatibility as per specification.
- With the Battery Gravity Builder technology, your battery gets boost charged at the comfort of your home and protects it from deep discharges.
- Easily configure the Solar & Inverters settings according to your requirements and for your various needs.
- Keep a check on solar consumption parameters such as Today’s saving, Yesterday’s saving and Total saving etc. through the modern display system.
- Additional equipment mode setting to facilitate usage of high-intensity appliances.
- Digital Signal Controller based design for pure sine wave output.
- Choose from multiple charging modes for different battery technologies such as Tubular/Flat Battery and for various capacities ranging from 80Ah to 230Ah.
- Intelligent load and temperature-based cooling fan operation.
