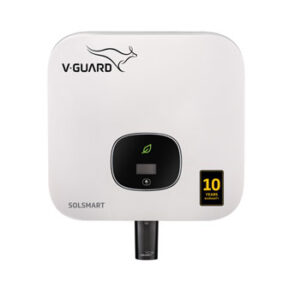

SOLSMART 15KT
Bring home a greener tomorrow with SolSmart 15KT Three phases On-Grid PV Inverters – an innovation marvel of the solar industry from the house of V-Guard.
Looking for a cleaner and greener alternative to generate power to cut down your electricity bills? Well, you are at the right place. Introducing SolSmart 15KT Three Phase On-Grid PV inverters from V-Guard. When sunlight strikes the solar panel, solar energy is converted to DC current which is then converted to AC using SolSmart inverters. The surplus electricity generated can be exported back to the grid as well. Futuristic isn’t it? Engineered to global standards with stylish designs, SolSmart On-Grid PV Inverter helps in better energy conservation and better energy savings. SolSmart 15KT Three Phase On-Grid PV inverters has an input power of 22500 W and a DC voltage of 1100 V, offering an max output current of 25 A. The wide MPPT instilled in the inverter gives an input range of 140 V– 1000 V DC with an efficiency of 98.60% which helps save energy and reduces your electricity bills. SolSmart comes with a free Wi-Fi dongle to monitor the real-time status of the system. It also enables you store the data for up to 25 years in Cloud. Live voltage can be monitored using a mobile app. Designed to be user-friendly, its OLED and touch control helps configure the system easily. Armed with advanced safety features, SolSmart KT offers advanced safety benefits during installation and operations. Further, this amazing product has a high operating temperature range of -25°C to 60°C (> 45°C Derating) for all weather conditions. Adding to its aesthetics is that the SolSmart 15KT On-Grid PV Inverters are lightweight, and the FR grade polycarbonate makes it resistant to chemicals. What’s more than a warranty of 10 years? Bring home Solsmart 15KT On-Grid PV Inverters. Welcome home a greener tomorrow.
- Input DC-Max. recommended PV power : 22500 W
- Input DC- Max. DC voltage : 1100 V
- Input DC-Start voltage : 200 V
- Input DC-MPP voltage range : 140-1000 V DC
- Output AC -THDI : <3%
- Output – AC grid connection type : 3W+PE / 3W+N+PE
- Max efficiency : 98.60%
- DC surge protection : SPD
- AC surge protection : SPD
- Dimensions (W / H / D) : 425 * 387 * 178mm
- Weight : 16.0KG
- Free Wi-Fi dongle to monitor the real-time status of the system
- It helps with better energy generation and energy conservation due to high solar yield. The wide MPPT range instilled in the inverter gives an input range of 140-1000 V DC.
- Armed with a high operating temperature range of -25°C to 60°C (> 45°C Derating) for harsh weather conditions.
- The OLED and interactive touch control displays the energy saved on each day as well as the total energy saved, live voltage and power.
- Equipped with a reliable touch screen facility as well as easy to clean with just a wipe, Solsmart 15KT Three Phase On-Grid PV inverters are designed to be user friendly.
- No storage loss as the product is devoid of battery.
- Warranty* 10 years
*Terms and conditions apply
- Provides a maximum efficiency of 98.60% which helps save energy and reduces your electricity bills.
- Equipped with advanced safety features that include an integrated DC switch, offering enhanced safety benefits during installations and operations.
- Live Parameters like Voltage , Current, Solar generation and Power can be monitored in real time with the help of a mobile app that can be accessed through Wi-Fi.
- The product is lightweight and has compact aesthetic features. The product made of FR-grade polycarbonate cabinet offers high chemical resistance.
- Data Storage up to 25 years if connected to cloud
- V-Guard is readily available for any assistance.
