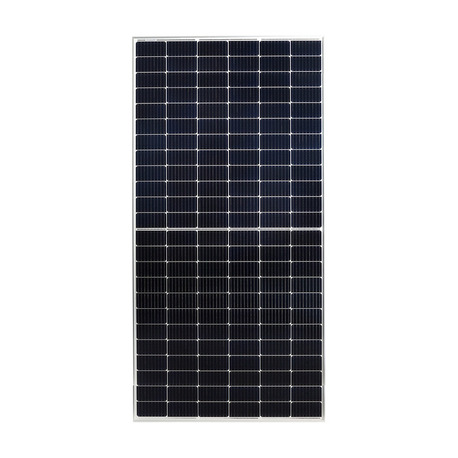

545 Watt - (24 Volt Solar PV Panel, 144 Cells) Half Cut
Features
Mechanical Specification
Features
- AR coated tempered glass, anti-reflective module surface
- Excellent weak light performance
- Quality & reliability assurance in standard weather condition
- 100% pre and post EL
- IP68 Junction box for long term endurance
- Ensure safety parameters through safety test
- Positive power tolerance upto 5W
Mechanical Specification
- Dimensions (L x W x T in mm) = 227 x 113 x 40
- Weight (kg) = 28.6
- No of cells = 144[12 x 6 / 12 x 6]
- Frame = Anodized aluminium alloy [6063, temper TS, silver color]
- Front cover = Low iron tempered glass [3.2 mm thick]
- Encapsulant = Ethylene-viny acetate[EVA] – PID free and UV resistant
- Back cover = Fluoro-polymer based composite film
- Junction box/connector rating/type = Split junction[IP68] – Weather proof/MC4 compatible
- Cable cross – section & length = 4mm² & 400mm
- Application class rating = Class A
- safety class rating = Class II
- Mechanical load test[as per IEC & UL] = 5400 Pa-front; 2400 Pa-back
- Mounting holes pitch[Y] – mm = [A] 1400mm [B] 1100mm [C]1095mm
- Mounting holes pitch[x] -mm = 1095mm
