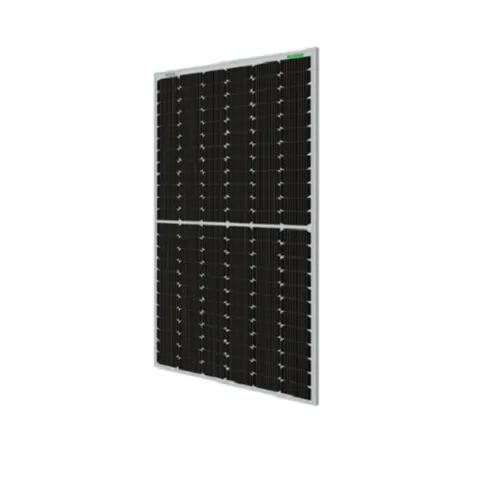

540 Watt - (24 Volt Solar PV Panel, 144 Cells)MP Half Cut
Features
Mechanical Specification
Features
- Manufactured using exceptional quality long-lasting Polycrystalline cells.
- Worry-free investment with 25 years warranty.*
- Aesthetically and functionally designed to suit residential, commercial and industrial applications.
- High transmittance and low iron tempered glass with anti-reflective coating to catch and absorb light immediately and effectively.
- Outstanding performance even in low-light environments like cloudy mornings, late evenings etc.
- can withstand even high wind pressures and heavy snow falls.
- Perfectly suitable for coastal areas as well.
- Flexible yet supremely sturdy and durable.
- Certified by Bureau of Indian Standards(BIS).
Mechanical Specification
- Dimensions (L x W x T in mm) = 227 x 113 x 40
- Weight (kg) = 28.6
- No of cells = 144[12 x 6 / 12 x 6]
- Frame = Anodized aluminium alloy [6063, temper TS, silver color]
- Front cover = Low iron tempered glass [3.2 mm thick]
- Encapsulant = Ethylene-viny acetate[EVA] – PID free and UV resistant
- Back cover = Fluoro-polymer based composite film
- Junction box/connector rating/type = Split junction[IP68] – Weather proof/MC4 compatible
- Cable cross – section & length = 4mm² & 400mm
- Application class rating = Class A
- safety class rating = Class II
- Mechanical load test[as per IEC & UL] = 5400 Pa-front; 2400 Pa-back
- Mounting holes pitch[Y] – mm = [A] 1400mm [B] 1100mm [C]1095mm
- Mounting holes pitch[x] -mm = 1095mm
